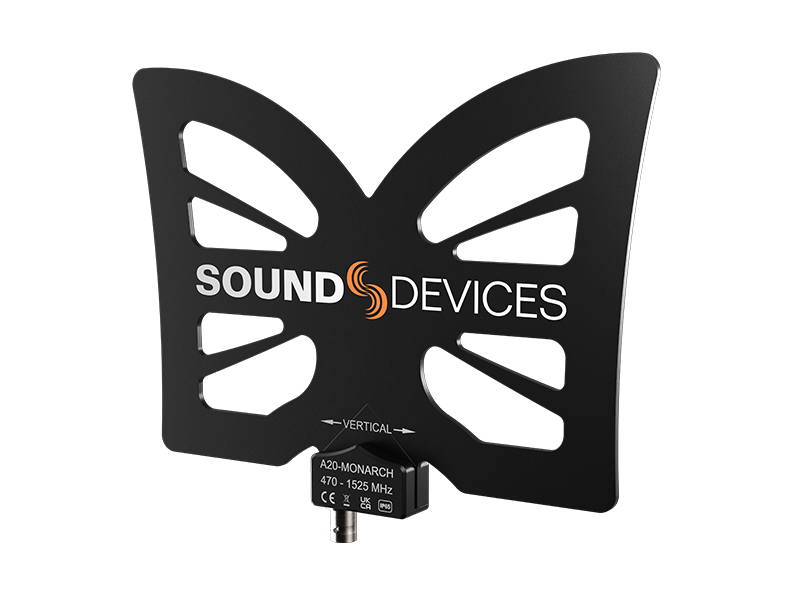

The Astral Monarch is an omnidirectional, wide-bandwidth (470-1525 MHz) antenna. It provides uniform coverage and gain across the exceptionally wide SpectraBand tuning range of the Sound Devices Astral series wireless products. The antenna is paired with a multifunction clamp and articulating arm, as well as two accessory cables.
Included in the Astral Monarch kit
- 1x Astral Monarch antenna with BNC-F connector and 1/4″-20 female threaded mount

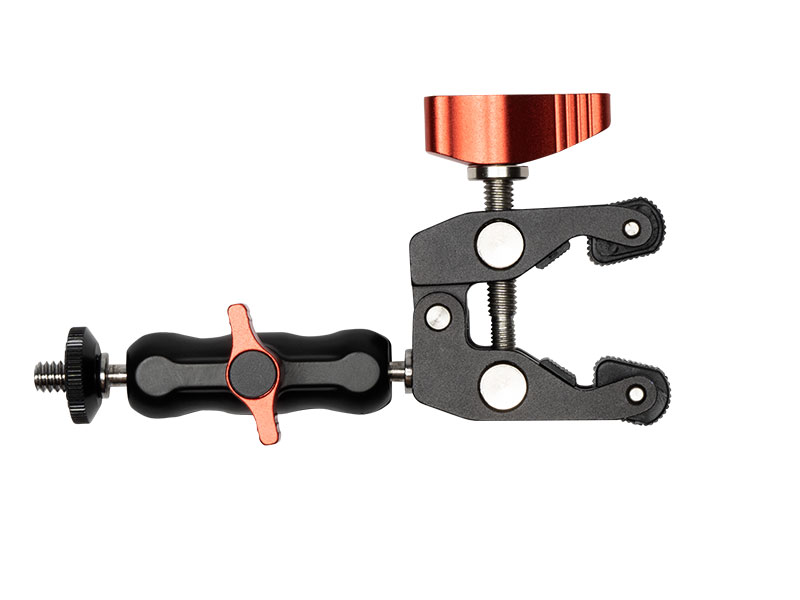

- 1x adjustable clamp and articulating arm with 1/4″-20 male threaded mount
- 1x 30 in/75 cm BNC-M to BNC-M cable
- 1x 18 in/45 cm BNC-M to SMA-M cable
Specifications
| Frequency range | 470 MHz – 1600 MHz |
| Gain | 2.2 dBi |
| Pattern | Omnidirectional |
Return Loss |
Better than 15 dB across entire 470 – 1600 MHz range |
| Mounting Threads | ¼"-20 |
| Dimensions (H x W x D) |
17.0 cm x 21.0 cm x 1.7 cm
(6.68 in x 8.26 in 0.67 in)
|
| Weight |
0.12 kg (unpackaged)
0.26 lbs (unpackaged)
|
