Download Sound Devices Astral Series Battery Chart PDF
|

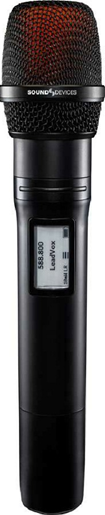

Astral HH
|
Astral HH Rechargeable cells: Sound Devices XL-B18650 3.7V Li-lon 4000mAh
|
Astral HH Recommended Charger: XSTAR VC8S Charger Vapcell S4+ Smart Charger V3.0
|
|
|
Astral TX USB-C port on Astral TX powers the transmitter and charges 3.7V 14500 battery while inserted in Astral TX (cannot charge NiMH in Astral TX)
|
Astral TX Rechargeable cells:
3x 1.2V NiMH AA All three batteries must match Sound Devices XL-B14500 3.7V Li-lon
|
Astral TX Recommended Charger: XSTAR VC8S Charger
|
Astral TX Primary cells: 3x 1.5V Lithium AA 3x 1.5V Alkaline AA
|
|
Astral Mini USB-C port on Astral Mini powers the transmitter and charges 3.6V Sony NP-BX1 Li-lon while inserted in Astral Mini
|
Astral Mini Rechargeable cells: 1x 3.6V Sony NP-BX1 Li-lon Astral BatteryDoubler accessory accommodates 2x 3.6V Sony NP-BX1 Li-lon for extended run time.
|

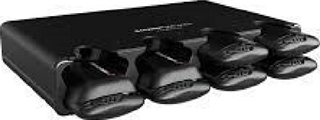

Astral Mini Recommended Chargers: Powerstation-8M Charger supports 8 Astral Mini or 4 Astral Mini with Astral BatteryDoubler Powerstation-8M requires 12 VDC TA-4 connector or 36 W USB-PD power supply. Telesin Portable Charging Case for Sony NP-BX1 |
Astral Mini Primary cells: 3x 1.5V Lithium AAA (Energizer Ultimate) All three batteries must match
|
