MP-1 User Guide and Technical Information

Microphone Preamplifier

Download User Guide PDF

General Description

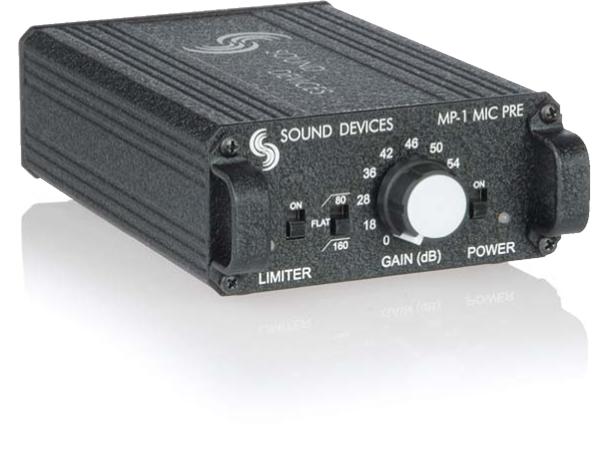

Sound Devices’ MP-1 is a portable, battery-powered microphone preamplifier with phantom power. Designed for high-resolution fi eld production, this studio-quality mic pre is ideal for critical radio, television, and film production applications.
With its rugged mechanical and electrical construction, compact size and high-quality components, MP-1 will provide years of superb audio performance under the most punishing field conditions.

Features

Audio Performance

  • Maximum of 66 dB of gain, adjustable in eleven discrete steps for accurate, repeatable gain settings
  • Dynamic range exceeding 120 dB
  • 20 Hz to 50 kHz audio bandwidth
  • High immunity to RF interference due to transformers, RF filtering, and all-metal construction
  • High current line output driver capable of driving very long cable runs

Transformer-Balanced

  • Premium quality input transformer provides superior sonic quality and freedom from interference problems
  • Custom-designed output transformer provides line driving ability with freedom from interference problems

Limiter

  • Extended range peak limiter via dual opto-isolators makes unit virtually “unclippable”

Battery Powered

  • Internal battery power (two AA) for convenient, low cost power
  • Battery life greater than 24 hours (phantom power off)

Durable Mechanical Construction

  • High strength extruded aluminum chassis with protective metal end rails to withstand punishing field conditions
  • Easy access battery compartment for quick battery changes

Phantom Power

  • Selectable 48-volt and 12-volt phantom power for condenser and dynamic microphones

High-Pass Filter

  • Two selectable corner frequencies, 80 and 160 Hz, 6 dB per octave
Frequency Response:

 20 Hz to 22 kHz, +0.1, -0.5 dB, –1 dB at 50 kHz (relative to 1 kHz level with 150 ohm source)

MP-1 frequency response.png

Gain: 0 dB to 66 dB input to output, switch selectable
Gain Accuracy: +0.6, –0.1 dB with reference to front panel gain markings (150 ohm source, 100k ohm load impedances)
Equivalent Input Noise:

–126 dBu (–128 dBV) minimum

(150 ohm source, fl at weighting, 22–22 kHz bandwidth, gain setting 36 dB or greater

Output Clipping Level:

+22 dBu minimum with 100k ohm load

+20 dBu minimum with 600 ohm load

Input Clipping Level:  +4 dBu minimum at the 0 or +18 dB gain setting
Dynamic Range:  122 dB minimum at the +18 dB gain setting
THD + Noise: 0.05% maximum (from 50 Hz – 22 kHz @ +4 dBu output level, +46 dB gain setting)
Common Mode Rejection Ratio:

100 dB minimum at 80 Hz

60 dB minimum at 10 Hz

Input: Transformer-balanced, 2000 ohm input impedance
Output: Transformer-balanced, 130 ohm output impedance
Low Cut: 80 Hz or 160 Hz (switch selectable), 6 dB per octave
Phantom Power: 12-volt or 48-volt (switch selectable) per DIN 45 596 specification
Limiter: Limits to +17 dBu output level 10:1 limiting ratio; 5 mS attack time, 100 mS release time; Amber/Red LED indicates limiting/clipping
Internal Voltage Rails: ±15 V, regulated
Power: 2 AA batteries, 24 hours life typical with +4 dBu signal into 600 ohms, no phantom power.
Power LED: Green indicates power and good battery. Red indicates power with low batteries. LED turns red when approximately 4 hours of battery life remain.
Polarity: Mic input to line output is non-inverting
Operating Temperature Range: 0° to 70° C  32° to 160° F
Dimensions:

43 mm x 94 mm x 140 mm (h x w x d)

(1.7” x 3.7” x 5.55”)

Weight: (unit only):

0.56 kg, 1.24 lbs (unit only)

0.86 kg, 1.90 lbs (packaged)

Certification:

Meets FCC Part 15 Class B

Eligible to bear CE mark (see conformance statement)

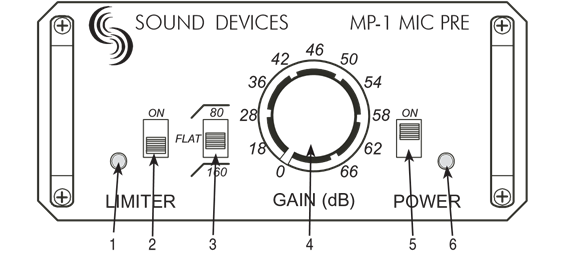

Front Panel Controls and Indicators

  1. LIMITER/Peak LED

    Bi-color LED illuminates red at 3 dB below clipping; illuminates amber to indicate limiter activity

  2. LIMITER Switch

    Activates the peak limiter. Limits to +17 output.

  3. High-Pass Filter Switch

    Three-position switch selects inserts an 80 Hz or 160 Hz corner frequency filter, 6 dB per octave. Center position of switch removes the filter from the signal path.

  4. Rotary Gain Switch

    Selects the amount of gain from input to output, adjustable in 11 increments.

  5. POWER Switch
    Powers the unit when switch is in the up position.
  6. POWER LED

    Bi-color LED illuminates green when the unit is powered and changes to red when approximately four hours of battery life remain.

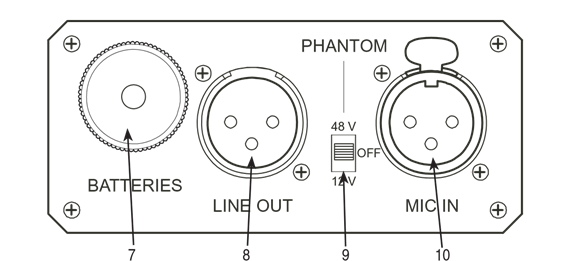

Back Panel Connectors and Controls

  1. BATTERY Compartment

    Requires two AA batteries for operation. Insert positive (+) end of battery first.

  2. LINE OUT

    Transformer balanced XLR line-level output. +22 dBu peak output level.

  3. PHANTOM Power Switch

    Three-position switch selects either 48-volt or 12-volt phantom power. Center position turns
    phantom power off.

  4. MIC IN

    Transformer-balanced XLR input accepts
    microphone level signals.

Operational Notes

Transformers

The isolation characteristics of transformers are superior to other balancing techniques for the adverse and uncontrolled environments of fi eld production. Transformers provide complete galvanic isolation from the driving source, meaning there is no direct electrical connection. Signals are “transformed” magnetically. Both the transformers in the MP-1 use premium magnetic core material to achieve high signal handling capability (especially at low frequencies) while keeping distortion to a minimum. Because of their inherently high common mode impedance, transformers are unrivaled by any other type of input for common-mode noise rejection.

Both the input and output of the MP-1 can be balanced or unbalanced without any problems. When unbalancing (either input or output) ground pin-3 to pin-1. There is no change in gain with an unbalanced connection into or out of the MP-1.

Phantom Power

Microphones that require phantom power should use the lowest voltage acceptable to maximize battery life. Electret-condenser microphones that can operate on phantom voltages from 11–52 volts will not have any performance benefit using 48-volt phantom; therefore 12-volt phantom is appropriate. Microphones requiring 48-volt phantom will not operate, or may operate with lower headroom and increased distortion, at 12 volts, therefore use 48-volt phantom. Consult your microphone documentation.

Dynamic microphones typically do not require phantom power. A properly connected balanced, dynamic microphone will, typically, not be affected by the presence of phantom power nor will it draw any current. However, it is good practice to turn phantom power off if the microphone cable is suspect. Poor or incorrectly wired microphone cable can cause audible artifacts in the microphone signal. (Phantom is an excellent cable tester.)

High-Pass Filter
The two positions of the high pass filter (low cut) in the MP-1 are useful for removing excess low frequency energy in the audio signal. The 80 Hz position is appropriate when recording general speech, music, and ambient sound. The 160 Hz position is useful to enhance speech clarity. The high pass filter is a single pole design, 6 dB per octave.

When possible, attempt to equalize at the sound source with microphone selection, use of a windscreen,
microphone placement, and onboard microphone fi ltering. A high pass fi lter on the microphone and a
high pass filter on the MP-1 will give an additive effect, increasing the slope of the filter.

Limiter
The MP-1 has a built-in peak responding limiter which can be turned on or off by the switch on the front
panel. The MP-1 limiter is really two completely separate limiters activated by the one switch; the first
limiter keeps the input gain stage from clipping, and the second limiter limits the output to +17 dBu. The two limiters enable the MP-1 to limit in excess of 50 dB, meaning that it is very difficult to clip the unit, no matter the gain setting. The Limiter LED on the front panel illuminates in proportion to the amount of limiting.

Batteries
The MP-1 is designed to operate on two AA alkaline cells for approximately 26 hours with typical signals (without phantom power). The audio performance of the MP-1 does not vary throughout the life of the batteries.

Many factors affect battery life including—battery chemistry, ambient temperature of operation, phantom voltage, microphone current draw, and output drive level. The chart below can be used as a starting point to estimate battery life. Experimentation is recommended to determine battery life for each individual setup.

Note: Nickel-Cadmium batteries are not recommended in the MP-1 since these batteries have lower energy per cell than other types and will result in very short service.

Battery Type Microphone Type Battery Life
Duracell AA MN 1500 Dynamic handheld 26 hrs.
Duracell AA MN 1500 Electret condenser, 12-volt phantom 18 hrs.
Duracell AA MN 1500 Studio condenser, 48-volt phantom 5 hrs.

Test conditions: 70 F, 42 dB gain with music source, 600 ohm load, +4 dBu output
